Kabuki Lift Set

Magic FX Power Drop Set + Fantek T-101 Truss Set

Compact kabuki installation for small events where DIY setup and dismantle is preferred.

350.00 excl. VAT

Kabuki Lift Set

Are you organising a small scaled reveal shot or opening? This kabuki set is ideal for your event. This set is - after a brief explanation - easy to install yourself. Making it a cost efficient way to create a spectacular opening or reveal show.

Construction

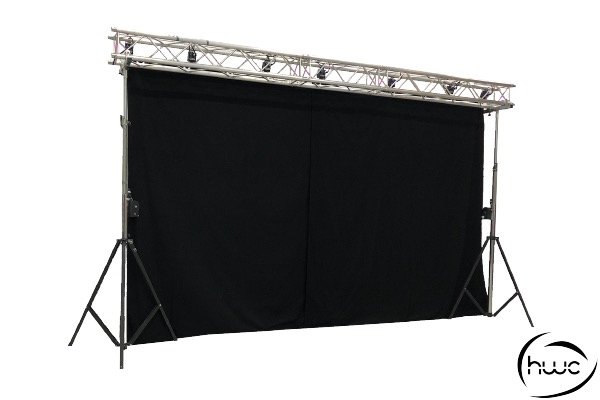

This kabuki set is almost on every location useable. It's a stand-alone system that does not rely on venue specifics. This system is based on a truss of 6 meters. The truss sections during transport are a maximum of 2 meters. This makes the transport with small van or box van easier. To bring the truss up to the desired height, the in the set included truss lifts can be used. These special truss lifts are making installing a curtain drop system easier. During the setup you can lower them to 1,26 meters in height. Now you can instal the powerdrops, cabling and curtain. After you tested the system thoroughly, you can use the truss lifts to bring the whole system to the desired height. The maximum of the lifts is 3,80 meters. The included black drapes have a height of 4 meters and thus always reach the floor.

Drop curtain

Installing Power Drops looks rather complicated. Luckily, this is not the case. Firstly you connect the controller to the power supply. Then you connect the first powerdrop to the controller and daisy-chain the rest of the powerdrops. All those cables are included in the set. We always recommend to run a couple of tests after your setup is complete. This to make sure the curtain drops as it should. Do you like to learn more about the Magic FX Power Drops? Check the product page.

Look & Feel

This set is designed to make setup and dismantling easy. However, for some events, the truss lift setup does not have the right look and feel. In that case we recommend to check out our other drop curtain sets. For example the goalpost set.

Tech specs

  • Brand

    Magic FX

  • Type

    Power Drop

  • Wattage

    1000 Watts

  • Controller

    Effectivator 1

  • Width Truss

    6 Meters

  • Minimal Height Truss Lift

    1.26 Meters

  • Maximal Height Truss Lift

    3.8 Meters

  • Colour Curtain

    Black

  • Weight Transport Case Power Drops

    18.5 KG

  • Dimensions Transport Case Power Drops

    50 x 32 x 27 cm (W x D x H)

Tips

Red Launch Button

During an opening, often a large red button is being used for the official moment. This product you can find at the related items at the bottom of this page.

Video

Kabuki Lift Set order

Compact kabuki installation for small events where DIY setup and dismantle is preferred.

€ 350.00 excl. VAT
