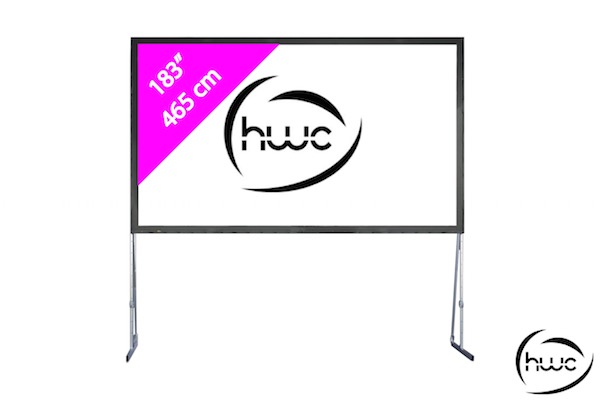

Projection Screen 183″

AV Stumpfl Monoblox 32 183" (465 cm)

A projection screen with a large surface for projection. Perfect for medium-sized events such as fashion shows, conferences and corporate presentations.

150.00 excl. BTW

Projection Screen 183″

This is a perfect projector screen for larger presentations, fashion shows, conferences and seminars with a projector. Thanks to an patented system, this projector is very fast and simple to set up and take down. The setup and break down do not even require the use of tools.

Assembly

The assembly of this screen is relatively simple. All you have to do is unfold the frame, attach your chosen screen using push buttons, and attach the legs with the included bolts. The screen is then ready to use. Because the screen is stretchy, it is tensed when it is attached to the frame. A very tightly stretched screen without bubbles and folds is the result.

Front & Rear Projection

Once you start unpacking the screen. You will find two different types of stretch screens. One is front projection and one is the rear projection option. This way you will always have the screen that you will need at your specific venue. The front projection option is the whiter version of the two. This is the most common option to use since there is the least amount of light energy loss. The projector will directly project on the white surface of the screen. The downside of this option is the need to put the projector on the audience side of the event. Next to finding the place to position the projector, you will also have to bear in mind that nobody stands in between the projector and the screen. Then there is the rear projection option. This is the more grey version of the two screens provided. For this you will need ample space behind the projection screen. Therefore you won't be able to use this type of screen at all venues. The projector will be behind the screen and project through the fabric. This will result in some loss of brightness.

Screen size

This screen has an aspect ratio of 16:9. Making it an ideal screen for 4K and HD projections. Please bear in mind that you make your video content (e.g. Powerpoint) in the 16:9 ratio to fill the complete screen. The screen is 425 cm wide and 249 cm high. The total projection surface is 405x229 cm (width x height). You think this 183" projection screen may be too large for your event? Check out our 147" and 120" options as well.

Technische specificaties

  • Brand

    AV Stumpfl

  • Model

    Monoblox 32 183"

  • Screen diagonal

    465 cm

  • Screen dimensions

    425 x 249 cm

  • Projection surface dimensions

    405 x 229 cm

  • Aspect ratio

    16:9

  • Projection screen weight

    26 KG

  • Transport case weight

    15 KG

  • Transport case dimensions

    134 x 38 x 37 cm (L x W x H)

Tips

Darkening

In order to get a good result from this product, it is essential to darken the presentation room. Environmental light can be very distracting during presentations using a projector. Of course, you can choose to rent a more powerful projector or choose a TV screen for situations where you can not darken the space enough.

Video

Projection Screen 183″ bestellen

A projection screen with a large surface for projection. Perfect for medium-sized events such as fashion shows, conferences and corporate presentations.

€ 150.00 excl. BTW
