Baseplate 55 x 55 cm

Baseplate 55 x 55 cm

A baseplate is an often used item when placing a truss construction. Indoors and outdoors the use of this product is essential. It's not allowed to simply place truss parts on the ground. In order to prevent damage to the truss as well as to distribute the weight evenly, you are required to use one plate under each leg or vertical.

Characteristics Baseplate 55x55 cm

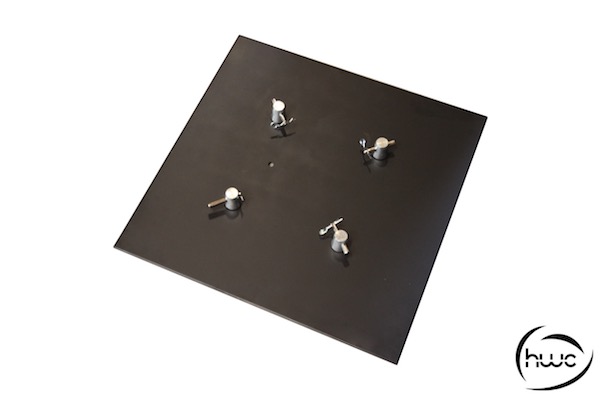

This robust steel plate is 55 x 55 x in size. The thickness of the plate is 1 cm. It has a weight of 25 KG. Using this product, you can add weight to your construction or enlarge the support surface of the Prolyte H30V series. Truss constructions like for example a goalpost need extra support at the ground level in order not to tip over. Are you thinking about placing such a construction outside? In that case a ballastblok alternative is essential. This baseplate is only suitable for indoor applications. For connecting the baseplate to truss, this plate has four CCS6-649 conical couplings. This enables you to combine it with Prolyte H30V and X30 truss series. On request we can also prepare the baseplate for ladder truss or single tubes.

Technische specificaties

• Brand

  Prolyte

• Model

  H30V Baseplate

• Colour

  Black

• Coupling system

  CCS6-649

• Max carry weight

  See supplier’s table

• Weight

  25 KG

• Dimensions

  550 x 550 x 10 mm (L x W x H)
